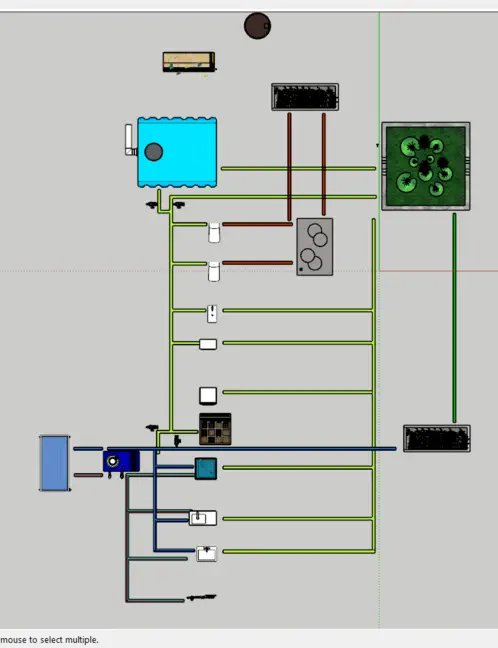

Water plan first idea Idea So what is the idea of the water? I draw a plan with input on the left and output on the right. See picture( metro mapping ). The rain comes into the light blue water tank and distributes it (in light green pipes) to: - the pool - the two toilets - a tap in the toilet - washing machine - the veg garden (in blue pipes also heated water by e.g. boiler) - the shower - the kitchen sink - the bath sink - the heat The output goes to different places. It depends of the quality of the drain. The toilets go to the septic and eventually to the faeces field. We do not know by now if we will use a composite toilet. It will save a lot of water and you can use the dry faeces directly for the bio garden. All the other drains can flow to the pool. From the pool a part will be transported directly to the water use equipment because of a lower need of quality. An other part will be first filtered for the equipment who needs a higher standard of quality. So let’s move on and work out the idea

tank

toilet toilet tap wash dryer veg kitch sink sink heat

rain

pool filter

faeces field septic
