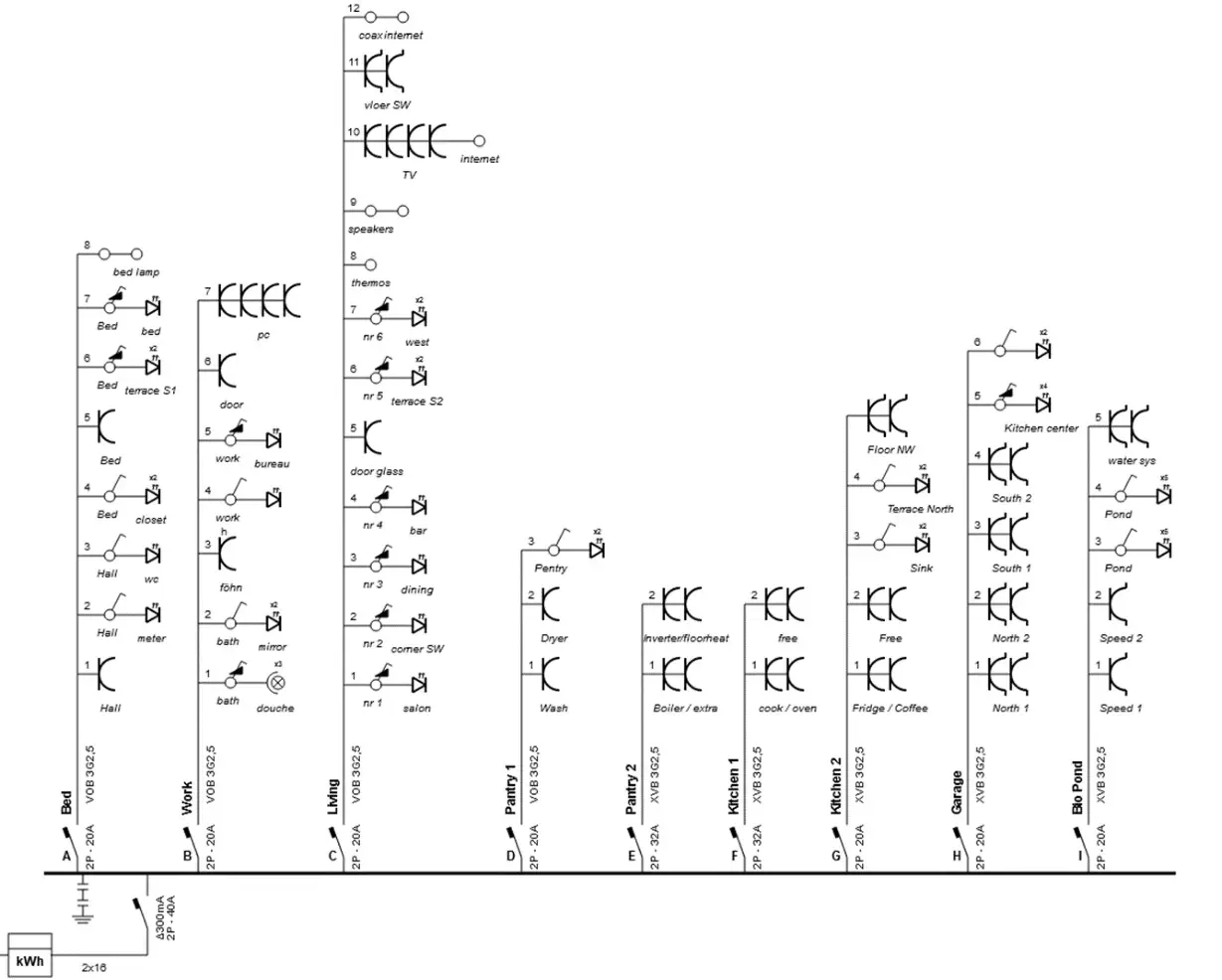

Electric circuit diagram As you have seen on the previous page, I calculated the total electrical circuit for the house. The next step is to create a circuit diagram for the electrician. There are several software programs. I have investigated 3 software programs: - Trikker; - Residential Wire Pro; - Eendraadschema online tekenen. The last is a free program on a Belgium site. https://eendraadschema.goethals-jacobs.be/ I have chosen for this one, because the two others I could not specify enough with text and numbers and values. Also I have written there are 5 other parts of the electric plan, there is no program which has all the 6 plans in their program.
